Hénon Map

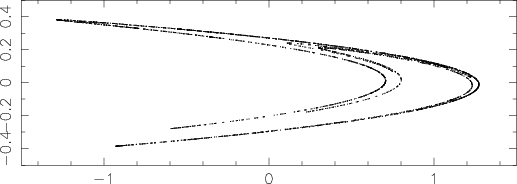

$\begin{figure}\begin{center}\BoxedEPSF{henon.epsf scaled 690}\end{center}\end{figure}$

A quadratic 2-D Map given by the equations

$\displaystyle x_{n+1}$	$\textstyle =$	$\displaystyle 1-\alpha {x_n}^2+y_n$	(1)
$\displaystyle y_{n+1}$	$\textstyle =$	$\displaystyle \beta x_n$	(2)

$\displaystyle x_{n+1}$	$\textstyle =$	$\displaystyle x_n\cos\alpha-(y_n-{x_n}^2)\sin\alpha$	(3)
$\displaystyle y_{n+1}$	$\textstyle =$	$\displaystyle x_n\sin\alpha+(y_n-{x_n}^2)\cos\alpha.$	(4)

The above map is for $\alpha=1.4$ and $\beta=0.3$ . The Hénon map has Correlation Exponent $1.25\pm 0.02$ (Grassberger and Procaccia 1983) and Capacity Dimension $1.261\pm 0.003$ (Russell et al. 1980). Hitzl and Zele (1985) give conditions for the existence of periods 1 to 6.

See also Bogdanov Map, Lozi Map, Quadratic Map
